WC67K Torsion-Sync NC Press Brake
Key words:
WC67K Torsion-Sync NC Press Brake
Classification:

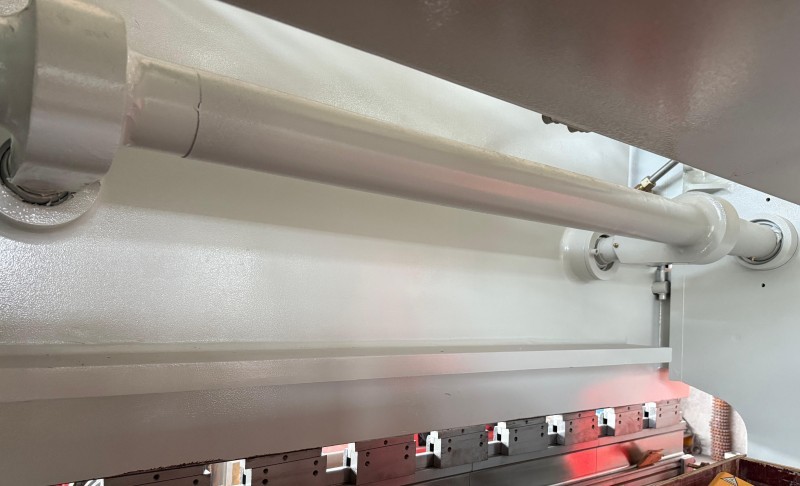

Using high-strength steel, the synchronous torsion bar controls the vertical movement of the slider. It has the advantages of simple structure, high strength, and low maintenance cost, making the NC series press brake stable and reliable, capable of producing many rough and precision sheet metal fabrication parts.

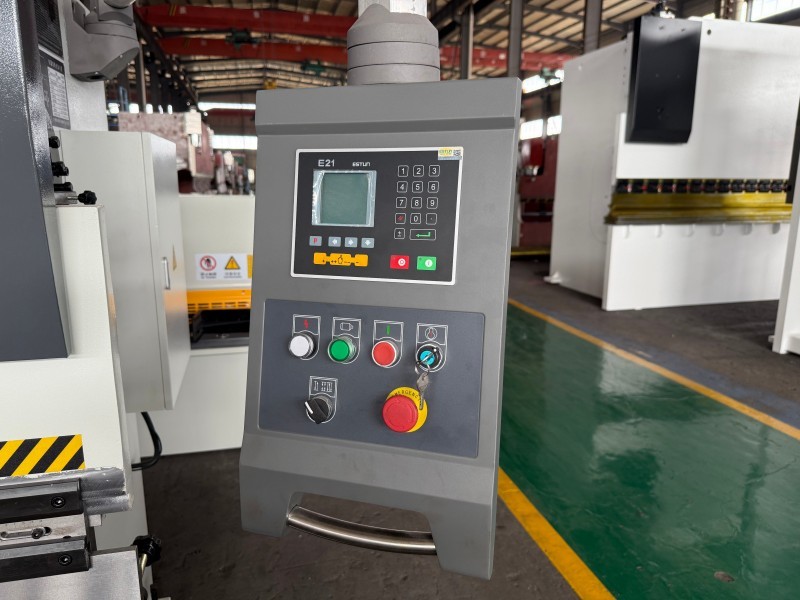

The high-definition LCD screen of E21 controller supports bilingual Chinese and English, and displays programming parameters on one page, making programming faster and more convenient. Intelligent positioning of X and Y axes supports manual adjustment, eliminating the need for mechanical hand-operated positioning devices.
All buttons on the panel are micro switches and have been strictly tested for EMC, high and low temperature, vibration, etc. to ensure the stability and service life of the product. CE certification support overseas markets.
Moreover, we provide optional controllers like Estun E300P, Delem DA41T, and Cybelec CT8. These controllers provide enhanced angle programming capabilities, intuitive touch screen displays, and advanced R-axis control functions, all of which significantly improve the efficiency and user-friendliness of the bending process.

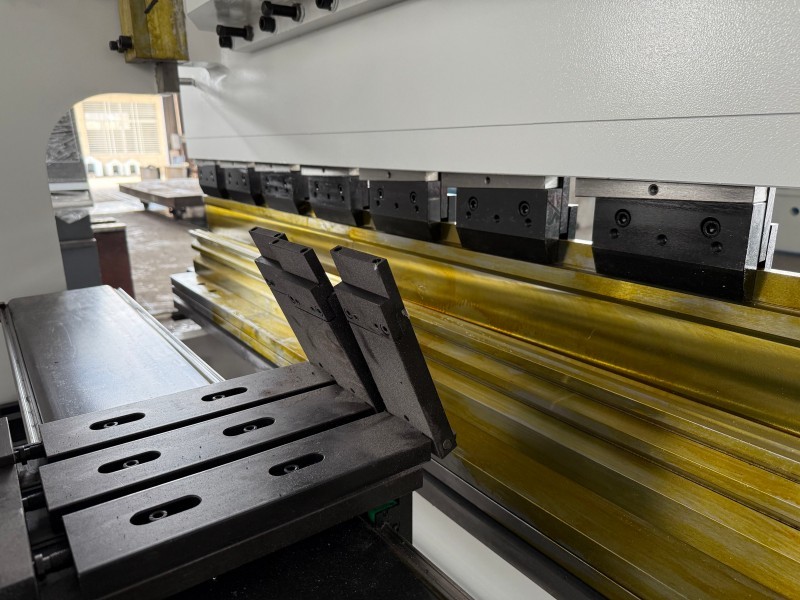

Our machines boast a meticulously crafted rear stop assembly, independently engineered for supreme precision. This feature includes an adjustable stop finger and manual lifting function, complemented by a high-precision ball screw. Such design versatility ensures compatibility with diverse tools.

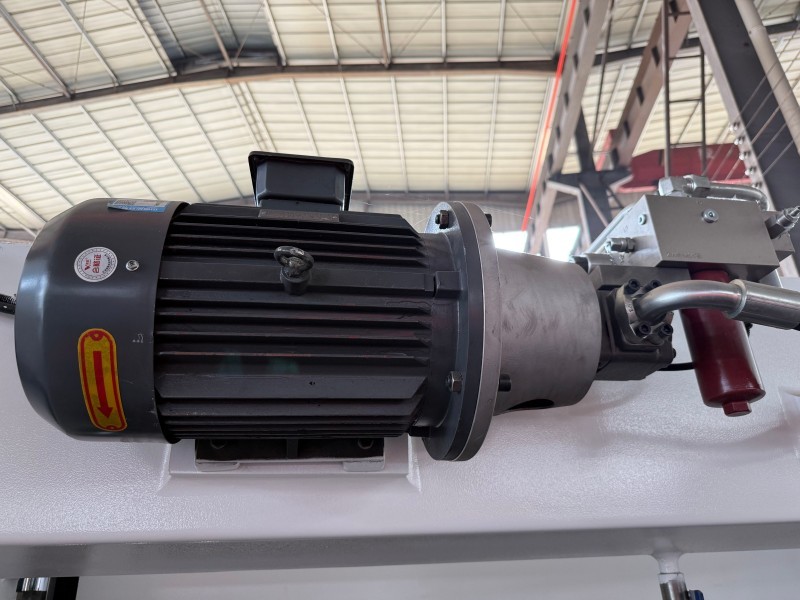

The Siemens electric motors, hailing from Germany, are renowned for their exceptional energy efficiency and energy-saving performance. These motors not only boast powerful starting torque and excellent operational performance but also feature low noise and low vibration characteristics, ensuring high reliability. Additionally, their power ratings and mounting dimensions adhere to the standards of the International Electrotechnical Commission (IEC), making operation easy and maintenance convenient. Through our customized services, we can adjust the output power and voltage configuration of the equipment based on the specific requirements of the customer’s region.

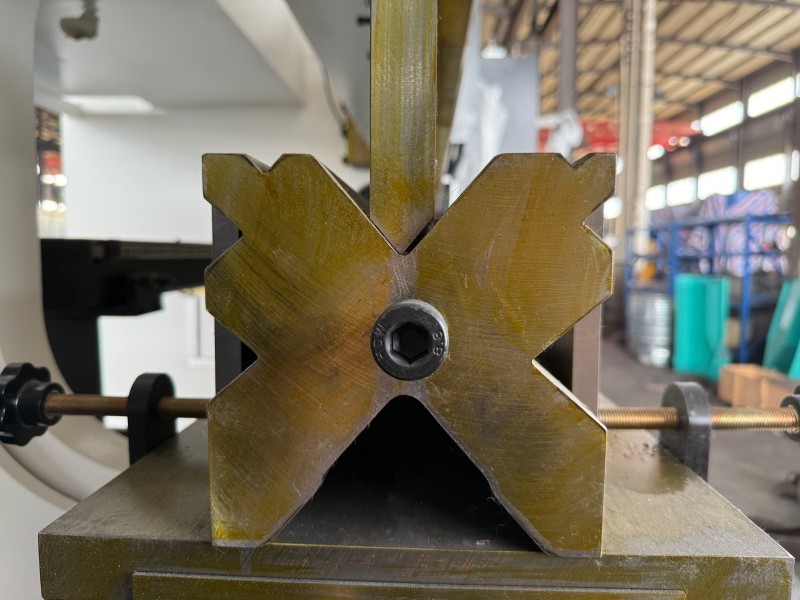

Prior to initiating an order, it is essential to deliberate on the appropriate press brake punches and dies. Selecting the correct combination of punch and die is vital for attaining the desired bend configuration. Our offerings include tailored tooling solutions that align with the precise bending specifications provided by our clients.

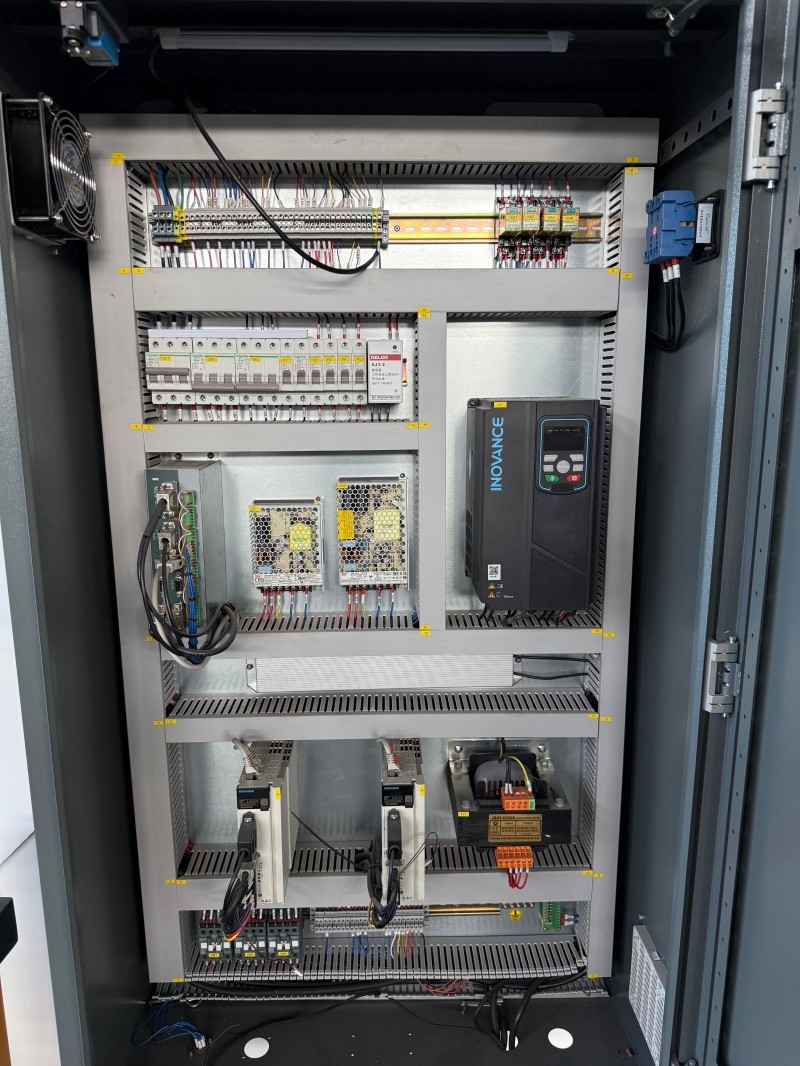

Using Schneider original parts imported from France, our machines have stable and durable performance, with a long service life. It is also equipped with original Estun electrical cabinet components, which have strong anti-interference ability and ensure stable electrical operation.
Technical Specifications
| Model | Nominal force KN | Working table length mm | Column spacing mm | Throat mm | Oil cylinder mm | Max Opening height mm | Slider speed trip | Main motor power KW | ||
| Down mm/e | Work mm/s | Return mm/s | ||||||||
| WC67Y-63/2500 | 630 | 2500 | 2050 | 250 | 200 | 330 | 100 | 8 | 100 | 5.5 |
| WC67Y-100/2500 | 1000 | 2500 | 2050 | 320 | 200 | 420 | 100 | 10 | 70 | 7.5 |
| WC67Y-100/3200 | 1000 | 3200 | 2600 | 320 | 200 | 420 | 100 | 10 | 70 | 7.5 |
| WC67Y-100/4000 | 1000 | 4000 | 3200 | 320 | 200 | 420 | 100 | 10 | 70 | 7.5 |
| WC67Y-125/3200 | 1250 | 3200 | 2600 | 320 | 200 | 420 | 100 | 8 | 70 | 7.5 |
| WC67Y-125/4000 | 1250 | 4000 | 3200 | 320 | 200 | 420 | 100 | 8 | 70 | 7.5 |
| WC67Y-160/3200 | 1600 | 3200 | 2600 | 340 | 200 | 470 | 140 | 9.5 | 100 | 11 |
| WC67Y-160/4000 | 1600 | 4000 | 3200 | 340 | 200 | 470 | 140 | 9.5 | 100 | 11 |
| WC67Y-200/3200 | 2000 | 3200 | 2600 | 320 | 220 | 510 | 140 | 10 | 110 | 15 |
| WC67Y-200/4000 | 2000 | 4000 | 3200 | 320 | 240 | 510 | 140 | 10 | 110 | 15 |
| WC67Y-200/5000 | 2000 | 5000 | 4000 | 320 | 240 | 510 | 140 | 10 | 110 | 15 |
| WC67Y-200/6000 | 2000 | 6000 | 4800 | 320 | 240 | 510 | 140 | 10 | 110 | 15 |
| WC67Y-250/3200 | 2500 | 3200 | 2600 | 400 | 240 | 530 | 140 | 8 | 100 | 18.5 |
| WC67Y-250/4000 | 2500 | 4000 | 3200 | 400 | 240 | 530 | 140 | 8 | 100 | 18.5 |
| WC67Y-250/5000 | 2500 | 5000 | 4000 | 400 | 240 | 530 | 140 | 8 | 100 | 18.5 |
| WC67Y-250/6000 | 2500 | 6000 | 4800 | 400 | 240 | 530 | 140 | 8 | 100 | 18.5 |
| WC67Y-300/3200 | 3000 | 3200 | 2600 | 400 | 240 | 560 | 140 | 8 | 110 | 22 |
| WC67Y-300/4000 | 3000 | 4000 | 3200 | 400 | 240 | 560 | 140 | 8 | 110 | 22 |
| WC67Y-300/6000 | 3000 | 6000 | 4800 | 400 | 240 | 560 | 140 | 8 | 110 | 22 |
| WC67Y-400/4000 | 4000 | 4000 | 3200 | 400 | 240 | 560 | 80 | 8 | 60 | 30 |
| WC67Y-400/6000 | 4000 | 6000 | 4800 | 400 | 240 | 560 | 80 | 8 | 60 | 30 |
| WC67Y-500/6000 | 5000 | 6000 | 4800 | 400 | 240 | 590 | 80 | 8 | 60 | 37 |
| WC67Y-600/6000 | 6000 | 6000 | 5800 | 400 | 240 | 590 | 80 | 8 | 60 | 37 |
| WC67Y-700/7000 | 7000 | 7000 | 5800 | 400 | 240 | 590 | 80 | 8 | 60 | 45 |
| WC67Y-800/6000 | 8000 | 6000 | 5800 | 400 | 240 | 590 | 80 | 8 | 45 | 45 |
| WC67Y-800/8000 | 8000 | 8000 | 5800 | 400 | 240 | 590 | 70 | 8 | 45 | 55 |
| WC67Y-1000/6000 | 10000 | 6000 | 5800 | 400 | 240 | 590 | 70 | 8 | 45 | 75 |
The CNC Press Brake Machine is a cutting-edge solution designed to deliver unmatched accuracy and efficiency in metal forming and bending applications. Equipped with advanced computer numerical control (CNC) technology, this machine ensures precise angle control, repeatability, and high-speed operation for sheet metal fabrication. Ideal for industries such as automotive, aerospace, and construction, the CNC press brake machine enhances productivity while reducing material waste and labor costs.
Featuring a robust hydraulic or electric servo-driven system, this CNC press brake machine offers superior bending force and flexibility. Its intuitive touch-screen interface allows operators to program complex bending sequences with ease, while automatic back gauge positioning ensures consistent results. Whether working with stainless steel, aluminum, or other alloys, this machine handles a wide range of thicknesses and lengths, making it a versatile choice for workshops and large-scale manufacturing plants.
Safety and durability are integral to the design of this CNC press brake machine. Built with high-strength steel frames and precision-ground components, it guarantees long-term reliability under heavy workloads. Additional features such as overload protection and laser safety guards enhance workplace safety. For businesses seeking to optimize their metal fabrication processes, the CNC press brake machine stands as the ultimate solution for precision bending and operational efficiency. Invest in innovation and elevate your production capabilities with this industry-leading machine.
