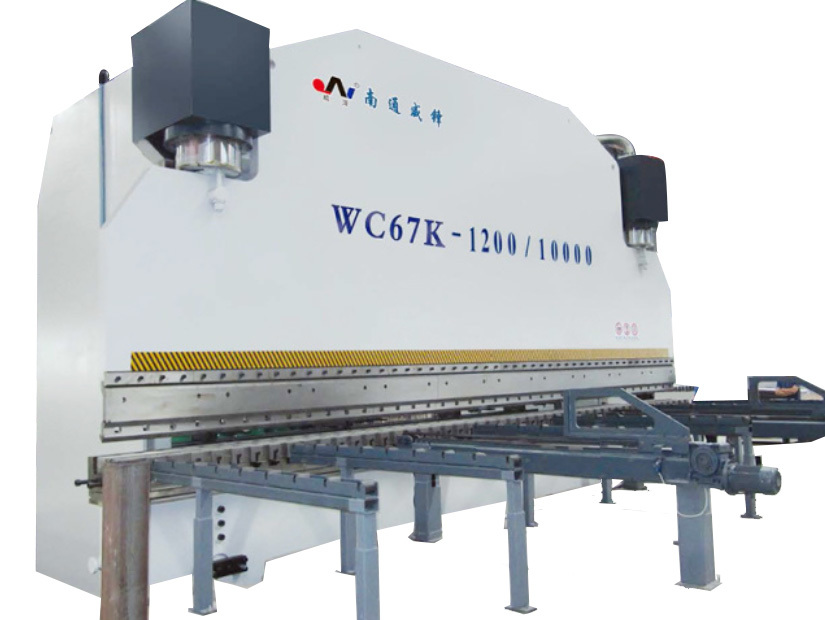

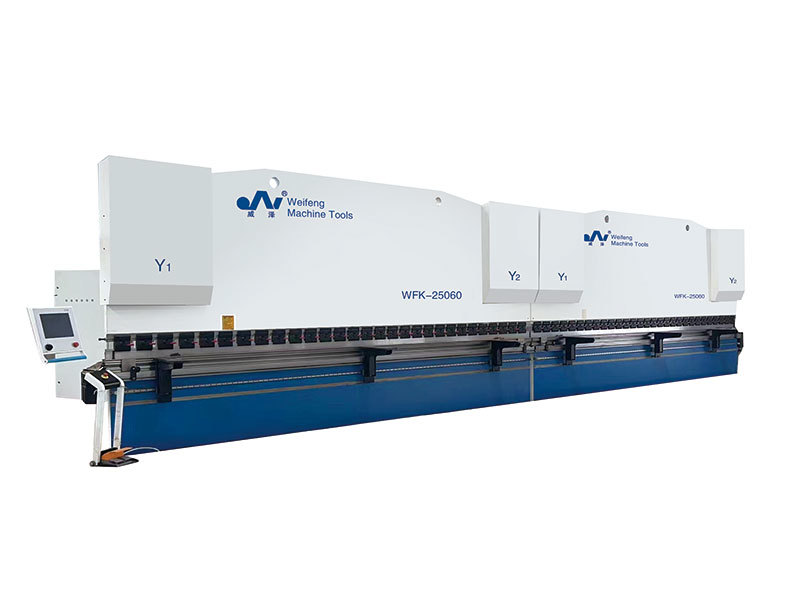

The WE67K Large-bend Series CNC Press Brake is a high-performance press brake bending machine designed for precision metal forming applications. It features a robust construction and advanced control system, making it ideal for handling large-scale bending tasks and large workpieces with ease. User-friendly and versatile, it supports various bending processes and prioritizes safety with protective features. Easy maintenance ensures minimal downtime, making it an efficient choice for industrial applications.
Overall, the WE67K Large-bend Series CNC Press Brake is a reliable and efficient solution for large-scale bending applications. Its advanced control system, robust construction, and user-friendly interface make it a valuable asset in any metalworking workshop or manufacturing facility.

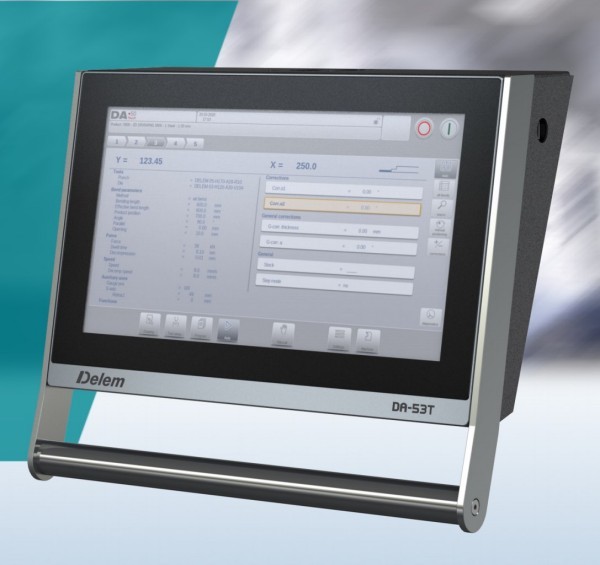

Advanced Control System: The WE67K Large-bend Series CNC Press Brake is equipped with an advanced CNC control system that allows for precise and efficient bending operations. This system enables users to easily program and execute complex bending sequences, ensuring consistent and accurate results.
User-Friendly Interface: The press brake is designed with user convenience in mind. It features an intuitive interface that allows operators to easily navigate through various functions and settings. This user-friendly design reduces the learning curve and improves productivity.

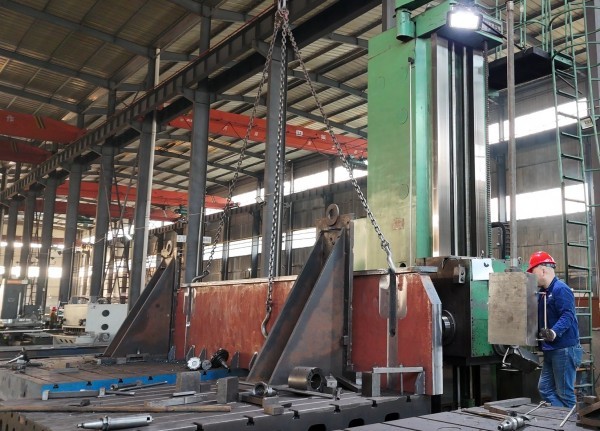

Integrated Machining Process
The frame of the HPA Large-bend Series CNC Press Brake is manufactured using an integrated machining process to ensure the highest level of precision. We use a large pentagonal CNC machining center to achieve one-time clamping precision machining. Eliminating the possibility of dimensional deviation.
Such a processing advantage at the CNHAWE factory guarantees that the press brake’s frame maintains accuracy and uniformity throughout the subsequent assembly process.
Large Bending Capacity
Large Bending Capacity: As the name suggests, the HPA Large-bend Series CNC Press Brake is capable of handling large-scale bending tasks. With its generous bending capacity, it can accommodate thicker materials and larger workpieces, making it suitable for a wide range of applications. By customizing various heavy-duty tools for different industries, our HPA Large-bend series press brake machines are capable of handling various heavy industrial sheet metal processing and manufacturing tasks.
Safety and Maintenance
Safety and Maintenance: Safety is a top priority in the design of this press brake. It is equipped with various safety mechanisms, such as protective guards and emergency stop buttons, to ensure operator safety during operation.
Meanwhile, the HPA Large-bend Series CNC Press Brake is designed for easy maintenance. Its accessible components and clear maintenance instructions make routine upkeep simple and hassle-free, minimizing downtime and maximizing productivity.
Starting from the customer placing the order, our business and technical teams will maintain close contact with the customer at every stage thereafter. At necessary times, the logistics team will intervene to provide sufficient transportation and lifting support. Our goal is to enable you to purchase large equipment with peace of mind and put it into production in a timely manner.
Front Support
The front support is made of aluminum alloy, with reliable strength and convenient and quick position adjustment. During the bending process, the front support provides front-end support for the plate to prevent the plate from sagging or deforming due to excessive suspension, ensuring that the plate maintains a stable posture during bending and helping to improve bending accuracy.
Indestructible Structure

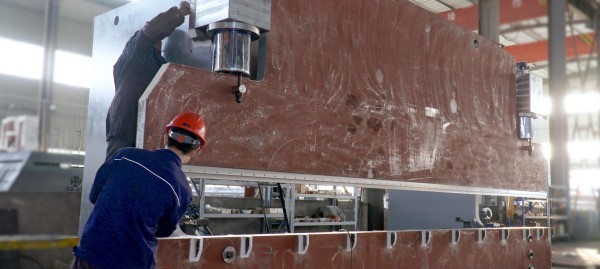

Indestructible Structure: Built with durability in mind, this press brake features a sturdy frame and high-quality components that can withstand heavy-duty usage. Its indestructible structure ensures long-lasting performance and reliability, even in demanding production environments. Before painting and assembling each machine, the frame must undergo a tempering and annealing process to achieve the effect of removing internal stress, and the surface must be sandblasted and shot blasted. This not only ensures the overall stability of the frame, but also demonstrates excellent appearance performance under the coverage of AkzoNobel’s paint, making it durable to meet the bending needs of large workpieces.
Technical Specifications
Model
Bending Force
Bending Length (A)
Oil Tank
Approaching Speed
Progress Rate
Return Speed
Column Distance (B)
Throat Depth (C)
Slider Travel (D)
Open Height (E)
Unit
KN
mm
L
mm/s
mm/s
mm/s
mm
mm
mm
mm
WE67K-400-4000
4000
4000
700
100
8
80
3100
500
300
610
WE67K-400-5000
4000
5000
700
100
8
80
3800
500
300
610
WE67K-400-6000
4000
6000
700
100
8
80
4800
500
300
610
WE67K-500-4000
5000
4000
800
100
8
80
3100
500
300
610
WE67K-500-5000
5000
5000
800
100
8
80
3800
500
300
610
WE67K-500-6000
5000
6000
800
100
8
80
5100
600
300
610
WE67K-600-4000
6000
4000
1000
90
8
90
3100
600
320
650
WE67K-600-5000
6000
5000
1000
90
8
90
3800
600
320
650
WE67K-600-6000
6000
6000
1000
90
8
90
4800
600
320
650
WE67K-800-6000
8000
6000
1800
90
8
90
4600
600
320
800
WE67K-800-8000
8000
8000
1800
90
8
90
6600
600
320
800
WE67K-1000-6000
10000
6000
1800
90
8
90
4600
600
400
900
Experience next-generation metal bending precision with our advanced CNC press brake, engineered to transform your production capabilities. This intelligent bending solution combines cutting-edge CNC technology with robust hydraulic/electric servo power to deliver unmatched accuracy (±0.01° repeatability) and efficiency in sheet metal forming. The CNC-controlled press brake features an intuitive 10.4" touchscreen interface with 3D simulation capabilities, allowing operators to program complex multi-step bends with unprecedented ease while minimizing material waste.
The CNC press brake stands out with its innovative adaptive bending technology, automatically compensating for material springback and thickness variations in real-time. Our machine's ultra-stable steel-welded frame with integrated hydraulic crowning ensures perfect bend consistency across the entire 4-meter working length. With optional automatic tool changing and robotic part handling systems, this press brake CNC solution can be seamlessly integrated into automated production lines, dramatically increasing throughput for industries ranging from precision electronics to heavy structural steel fabrication.
Built for 24/7 industrial operation, our CNC press brake incorporates multiple safety systems including laser protection zones, dual-circuit emergency stops, and overload protection. The energy-efficient design reduces power consumption by up to 30% compared to conventional models, while the predictive maintenance system alerts operators to potential issues before they impact production. Whether you're creating intricate components or large structural parts, our CNC press brake delivers the perfect combination of precision, reliability, and smart manufacturing technology to keep your business competitive in today's demanding metalworking landscape.
