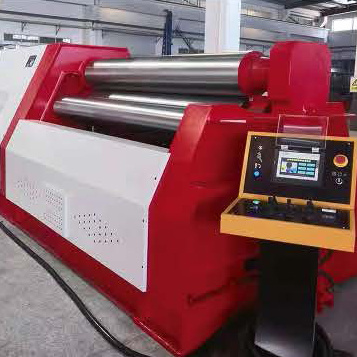

W12 Extra-Large Four roll CNC plate rolling machine
Key words:
W12 Extra-Large Four roll CNC plate rolling machine
Classification:
Technical Specifications

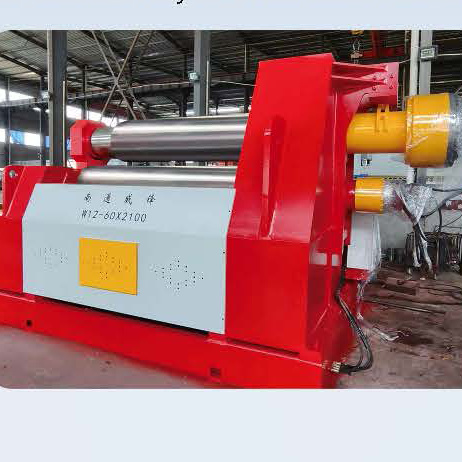

W12-60x2100 Fully CNC Four-RollerPlate rolling Machine
Technical Parameters of W12NC Series CNC Four-Roller Plate Bending Machine

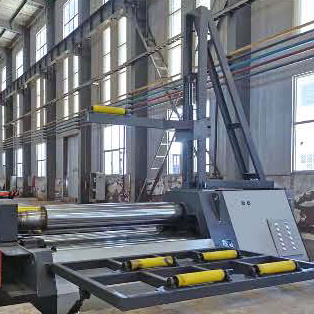

Automatic rolling production line
| Serial number | Specification | Thickness of coild plate(mm) | Width of coild plate (mm) | Pre-bending thickness (mm) | Rod length (mm) | Dimension (mm) |
| WF0415 | W12NC-4x1500 | 1-4 | 1500 | 2 | 1600 | 2800c800c1000 |
| WF0420 | W12NC-4x2000 | 1-4 | 2000 | 2 | 2100 | 3400c900c1000 |
| WF0620 | W12NC-6x2000 | 1-6 | 2000 | 3 | 2600 | 3600x1100x1100 |
| WF0625 | W12NC-6x2500 | 1-6 | 2500 | 3 | 2600 | 4000x1200x1200 |
| WF0825 | W12NC-8x2500 | 2-8 | 2500 | 4 | 2600 | 4700x1500x1500 |
| WF1220 | W12NC-12x2000 | 3-12 | 2000 | 10 | 2100 | 4200x1500x1500 |
| WF1225 | W12NC-12x2500 | 3-12 | 2500 | 10 | 2600 | 4800x1600x1600 |
| WF1625 | W12NC-16x2500 | 3-16 | 2500 | 12 | 2600 | 5000x1700x1700 |
| WF1640 | W12NC-16x4000 | 4-16 | 4000 | 10 | 4100 | 6600x1700x1700 |
| WF2025 | W12NC-20x2500 | 3-20 | 2500 | 16 | 2600 | 5000x1900x1880 |
| WF2032 | W12NC-20x3200 | 4-20 | 3200 | 16 | 3300 | 4600x2200x2200 |
| WF2520 | W12NC-25×2000 | 3-25 | 2000 | 20 | 2100 | 4600x1900x1900 |
| WF2525 | W12NC-25×2500 | 4-25 | 2500 | 20 | 2600 | 5100x2200x2200 |
| WF2532 | W12NC-25×3200 | 5-25 | 3200 | 20 | 3300 | 6600x2550x2500 |
| WF3025 | W12NC-30x2500 | 5-30 | 2500 | 25 | 2600 | 6000x2800x2900 |
| WF3032 | W12NC-30x3200 | 5-30 | 3200 | 25 | 3300 | 6800x2900x2900 |
| WF4025 | W12NC-40x2500 | 6-40 | 2500 | 32 | 2600 | 6500x3000x3000 |
| WF4525 | W12NC-40x3200 | 6-40 | 3200 | 32 | 3300 | 7100x3000x3000 |
| WF5025 | W12NC-50x2500 | 8-50 | 2500 | 40 | 2600 | 6500x3000x3000 |
| WF5032 | W12NC-50x3200 | 8-50 | 3200 | 40 | 3300 | 7100x3000x3000 |
| WF6032 | W12NC-60x3200 | 10-60 | 3200 | 50 | 3300 | 7200x3300x3500 |
| WF8032 | W12NC-80×3200 | 16-80 | 3200 | 70 | 3300 | 7500x3500x3800 |
| WF10032 | W12NC-100x3200 | 20-100 | 3200 | 90 | 3300 | 8100x3800x3800 |
| WF12032 | W12NC-120×3200 | 20-120 | 3200 | 100 | 3300 | 8200x4000x4000 |
| WF14032 | W12NC-150x3200 | 25-140 | 3200 | 100 | 3300 | 8600x5000x5000 |
| WF16032 | W12NC-160x3200 | 30-160 | 3200 | 120 | 3300 | 8600x5200x5200 |
| WF18032 | W12NC-180×3200 | 30-180 | 3200 | 140 | 3300 | 8800x6000x5800 |
Description and specifications given in this catalogue are subject to modification without notice.
The CNC plate rolling machine is a state-of-the-art solution for precision metal forming, designed to deliver unmatched accuracy and efficiency. Equipped with advanced CNC technology, this machine ensures consistent bending and rolling of plates up to [X] mm thick, making it ideal for industries like shipbuilding, aerospace, and heavy machinery. Its programmable controls allow for seamless operation, reducing manual errors and increasing productivity.
With robust construction and high load-bearing capacity, the CNC plate rolling machine guarantees durability even under heavy-duty applications. The machine features automatic adjustments for roll positioning, ensuring uniform curvature and flawless results. Whether you're working with steel, aluminum, or other metals, this machine provides superior performance with minimal material waste.
Safety and ease of use are prioritized in the design of this CNC plate rolling machine. Operators benefit from intuitive touchscreen interfaces, real-time monitoring, and emergency stop functions. Its versatility in handling various plate widths and radii makes it a must-have for modern fabrication workshops. Invest in this cutting-edge equipment to elevate your metalworking capabilities.
